Microsoft Exchange Server Network

Microsoft Exchange Server Environment

Deployed an Exchange server environment using Microsoft Exchange Server 2016. Created three (3) domain controllers, two (2) mailbox servers, and one (1) edge transport server on VMware. One (1) of the domain controllers was running Server Core. Formatted disks with different file systems and created simple, spanned, stripped, mirrored, and RAID-5 volumes. Installed and configured Active Directory including creating and managing OU structure, users, and groups. Created an Active Directory backup and restored from backup. Installed and upgraded Exchange Server 2016. Created mailbox databases in a DAG. Configured namespaces, SSL certificates, and mail flow. Spent extensive time using PowerShell and Exchange Management Shell for installs and configuration. See project screenshots below.

Domain Controller Configurations

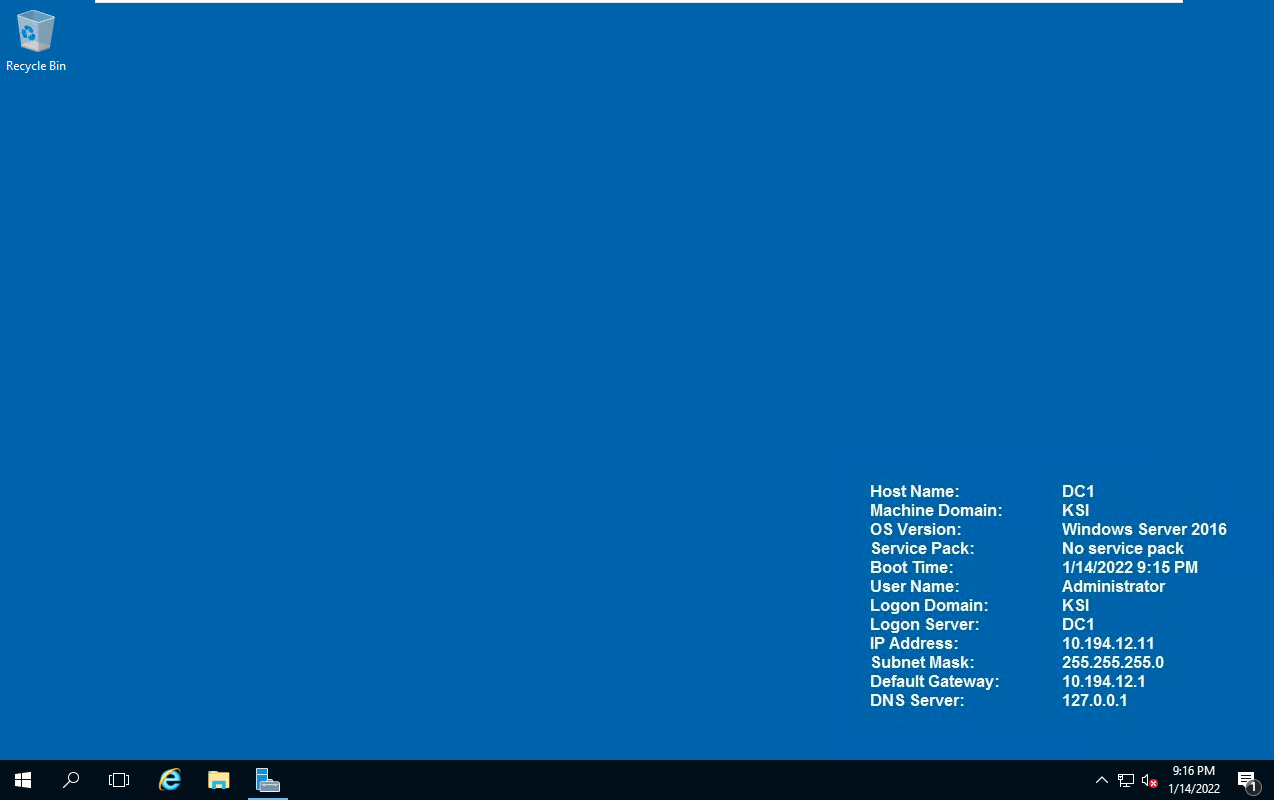

Figure 1. Domain Controller 1 - IP Configurations

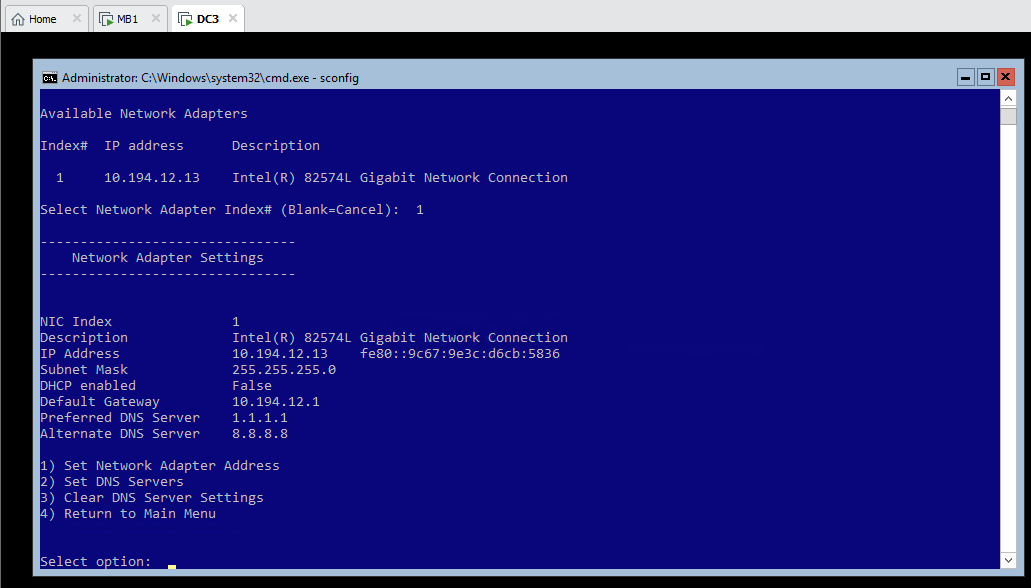

Figure 2. Domain Controller 3 (Server Core) - IP Configurations

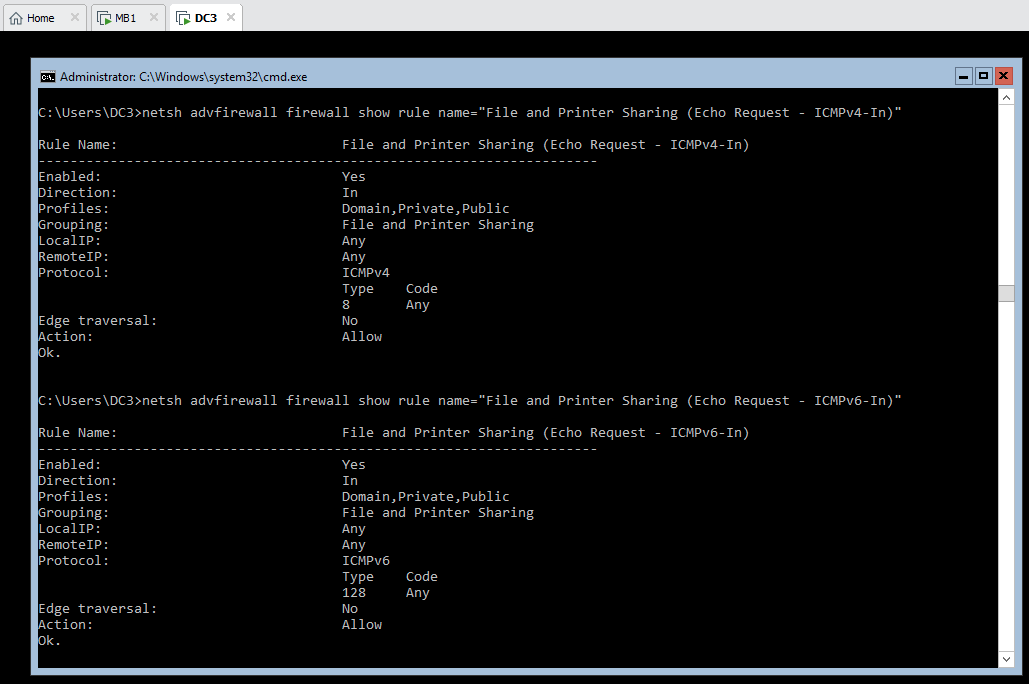

Figure 3. Domain Controller 3 (Server Core) - Firewall Configurations

File Systems

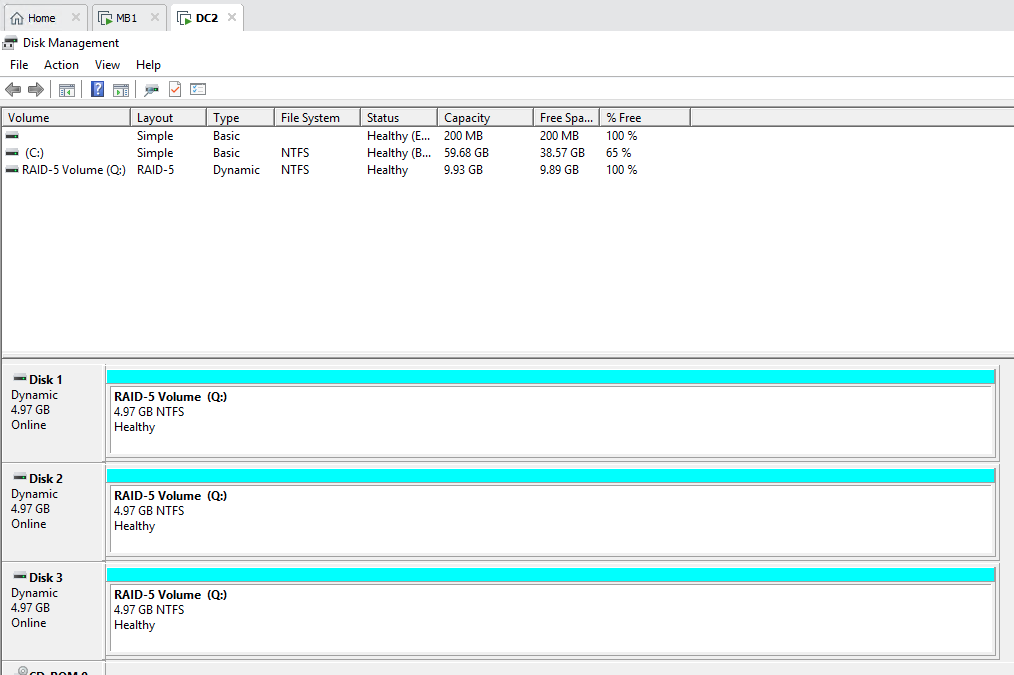

Figure 4. Domain Controller 2 - Raid Volumes

Active Directory

Figure 5. Active Directory Installation

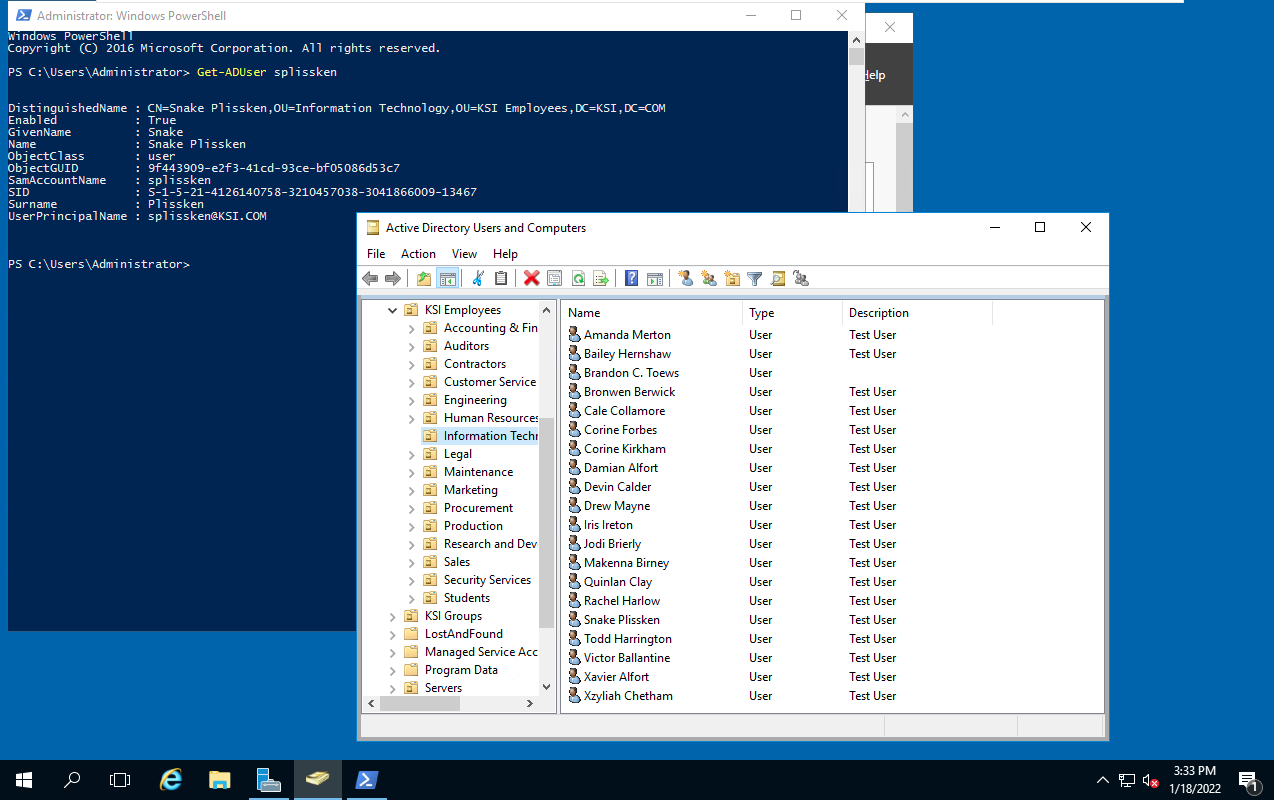

Figure 6. Active Directory - OUs & Users

Exhange Server

Figure 7. Exchange Server Install

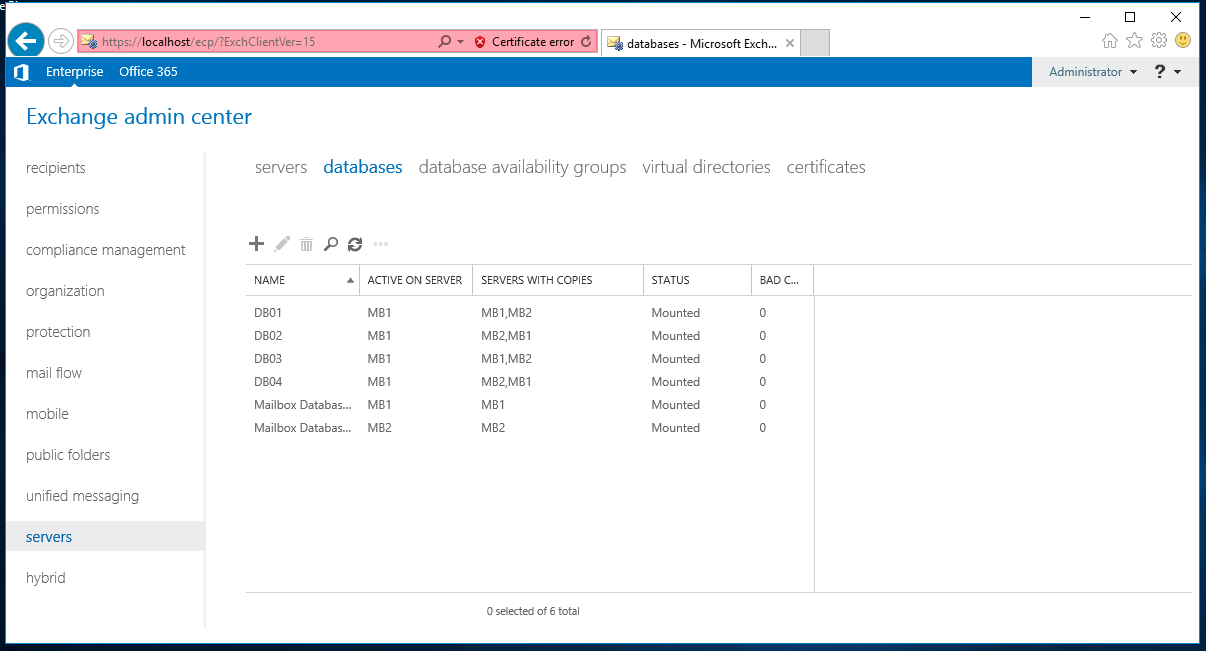

Figure 8. Mailbox Databases

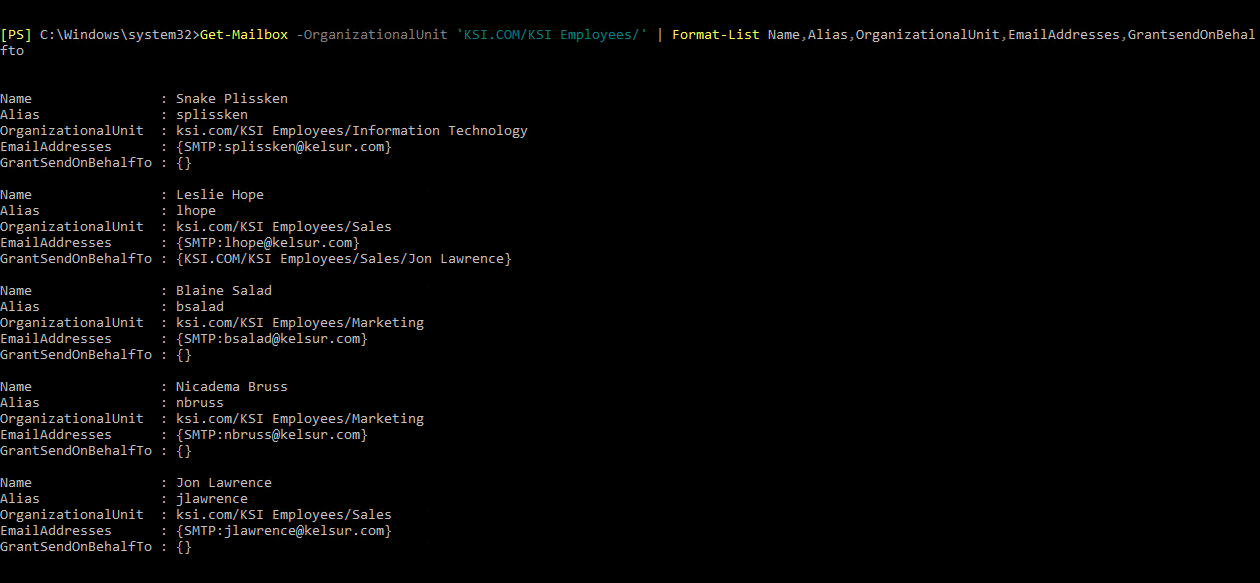

Figure 9. Recipients

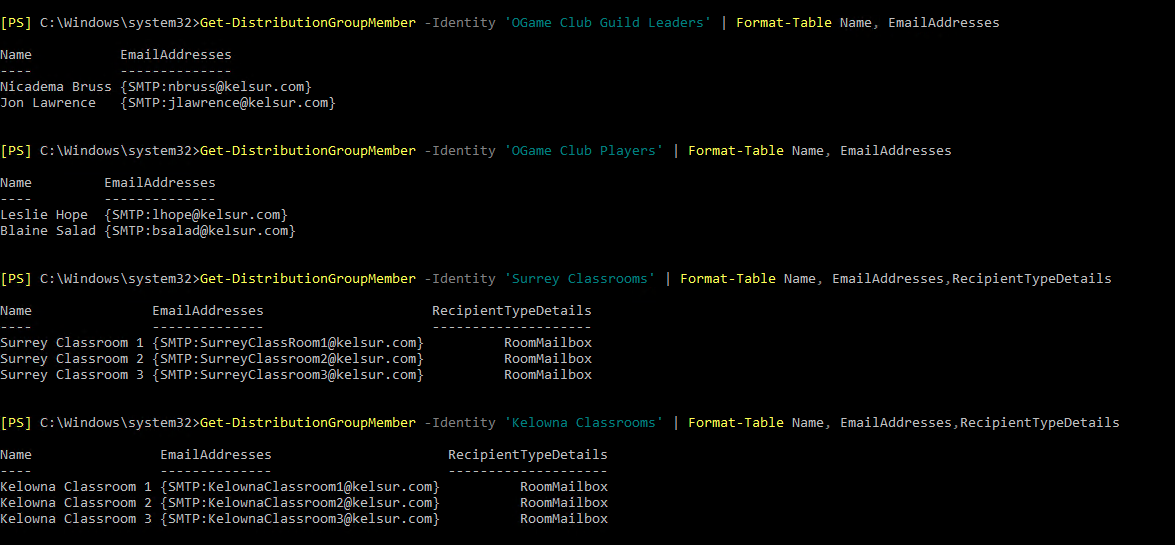

Figure 10. Resource Mailboxes & Distribution Groups
