Networking with Cisco Technologies

Designed and constructed a fictional network with five (5) departments in two (2) locations using GNS3 simulation software. All departments were represented by Windows 10 VMs run on VMware and were configured to communicate with each other thru GNS3. Variable length subnetting from an address space of 172.16.16.0/20 was used to create department subnets. Routing protocol OSPF along with ACLs were used to allow departments to communicate with each other while at the same time preventing certain ones from reaching others. See figures below for full documentation of the project.

Expand To Learn About Project Scenario

The head office is located in Vancouver and has three departments. These departments are Accounting, Administration, and Human Resources. The Accounting department uses 10 computers, Administration uses 19 computers, and Human Resources uses 3 computers.

The branch office is located in Kelowna and has two departments. These departments are Marketing and Sales. The Marketing department uses 16 computers, and the Sales department uses 45 computers.

Network Diagram

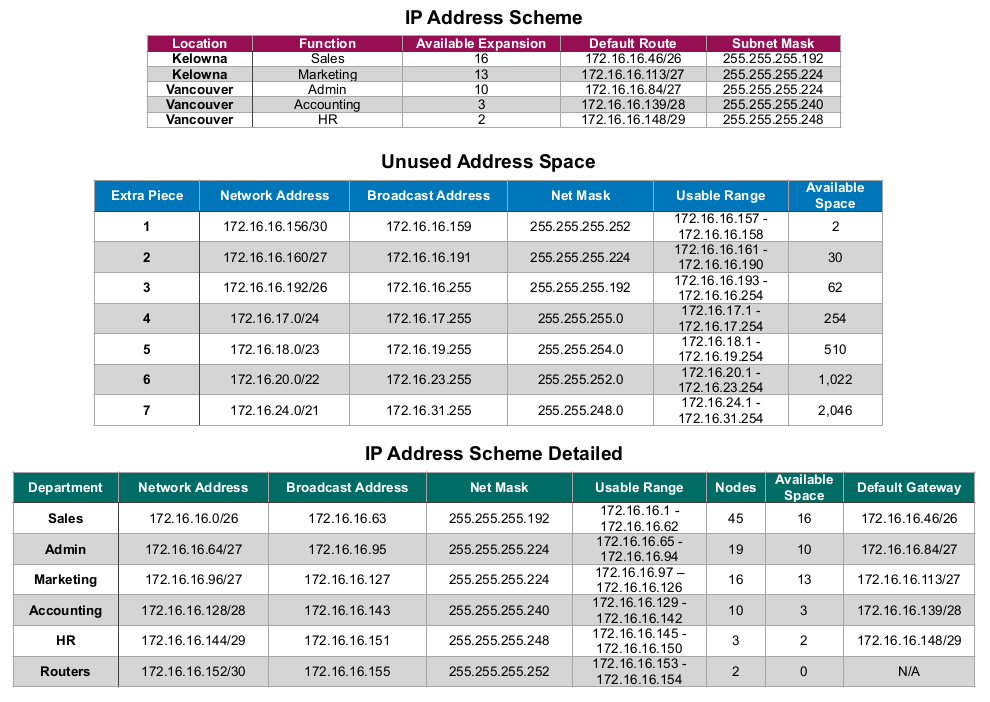

IP Address Scheme

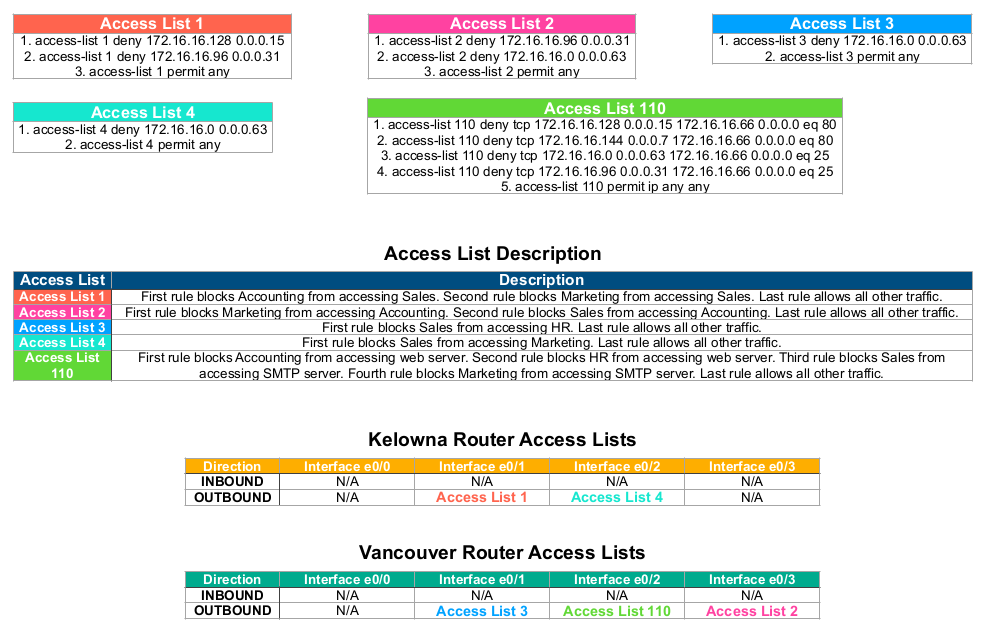

Access Control Lists

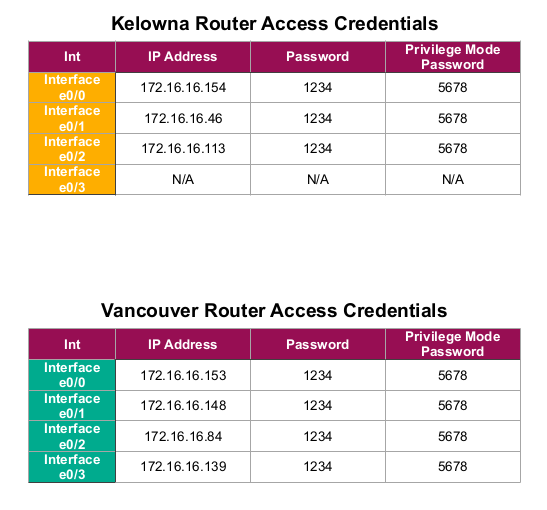

Router Access Credentials

Router Configurations

Listing 1. Vancouver Router Configuration

!
!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname Vancouver
!
boot-start-marker
boot-end-marker
!
enable secret 5 $1$rCPC$Q34x6NTdMojTQHgQQwDe7/
!
no aaa new-model
memory-size iomem 5
no ip icmp rate-limit unreachable
!
!
ip cef
no ip domain lookup
!
!
!
!
!
ip tcp synwait-time 5
!
!
interface Ethernet0/0
  description Router Network
  ip address 172.16.16.153 255.255.255.252
  half-duplex
!
interface Ethernet0/1
  description HR Network
  ip address 172.16.16.148 255.255.255.248
  ip access-group 3 out
  half-duplex
!
interface Ethernet0/2
  description Admin & SMTP/WebServer Network
  ip address 172.16.16.84 255.255.255.224
  ip access-group 110 out
  half-duplex
!
interface Ethernet0/3
  description Accounting Network
  ip address 172.16.16.139 255.255.255.240
  ip access-group 2 out
  half-duplex
!
router ospf 1
  log-adjacency-changes
  network 172.16.16.64 0.0.0.31 area 0
  network 172.16.16.128 0.0.0.15 area 0
  network 172.16.16.144 0.0.0.7 area 0
  network 172.16.16.152 0.0.0.3 area 0
!
no ip http server
!
ip forward-protocol nd
!
!
access-list 2 deny   172.16.16.96 0.0.0.31
access-list 2 deny   172.16.16.0 0.0.0.63
access-list 2 permit any
access-list 3 deny   172.16.16.0 0.0.0.63
access-list 3 permit any
access-list 110 deny   tcp 172.16.16.128 0.0.0.15 host 172.16.16.66 eq
www
access-list 110 deny   tcp 172.16.16.144 0.0.0.7 host 172.16.16.66 eq
www
access-list 110 deny   tcp 172.16.16.0 0.0.0.63 host 172.16.16.66 eq
smtp
access-list 110 deny   tcp 172.16.16.96 0.0.0.31 host 172.16.16.66 eq
smtp
access-list 110 permit ip any any
no cdp log mismatch duplex
!
control-plane
!
banner motd

Welcome to Vancouver

!
line con 0
  exec-timeout 0 0
  privilege level 15
  logging synchronous
line aux 0
  exec-timeout 0 0
  privilege level 15
  logging synchronous
line vty 0 4
  password 1234
  login
!
!
end

Listing 2. Kelowna Router Configuration

!
!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname Kelowna
!
boot-start-marker
boot-end-marker
!
enable secret 5 $1$dGub$MNu5a6gEp0IcO1T14Qlg4/
!
no aaa new-model
memory-size iomem 5
no ip icmp rate-limit unreachable
!
!
ip cef
no ip domain lookup
!
!
!
!
!
ip tcp synwait-time 5
!
!
interface Ethernet0/0
  description Router Network
  ip address 172.16.16.154 255.255.255.252
  half-duplex
!
interface Ethernet0/1
  description Sales Network
  ip address 172.16.16.46 255.255.255.192
  ip access-group 1 out
  half-duplex
!
interface Ethernet0/2
  description Marketing Network
  ip address 172.16.16.113 255.255.255.224
  ip access-group 4 out
  half-duplex
!
interface Ethernet0/3
  description Nothing
  no ip address
  shutdown
  half-duplex
!
router ospf 1
  log-adjacency-changes
  network 172.16.16.0 0.0.0.63 area 0
  network 172.16.16.96 0.0.0.31 area 0
  network 172.16.16.152 0.0.0.3 area 0
!
no ip http server
!
ip forward-protocol nd
!
!
access-list 1 deny   172.16.16.128 0.0.0.15
access-list 1 deny   172.16.16.96 0.0.0.31
access-list 1 permit any
access-list 4 deny   172.16.16.0 0.0.0.63
access-list 4 permit any
no cdp log mismatch duplex
!
control-plane
!
banner motd


Welcome to Kelowna


!
line con 0
  exec-timeout 0 0
  privilege level 15
  logging synchronous
line aux 0
  exec-timeout 0 0
  privilege level 15
  logging synchronous
line vty 0 4
  password 1234
  login
!
!
end
